From the statistical method to the R package - the `mmrm` example

Daniel Sabanés Bové, Doug Kelkhoff (Roche)

R/Pharma Workshop

October 19, 2023

What we will cover today

Show practical steps for obtaining an R package implementation of a statistical method
- Discuss key considerations for writing statistical software
- Illustrate throughout with the mmrm package development example

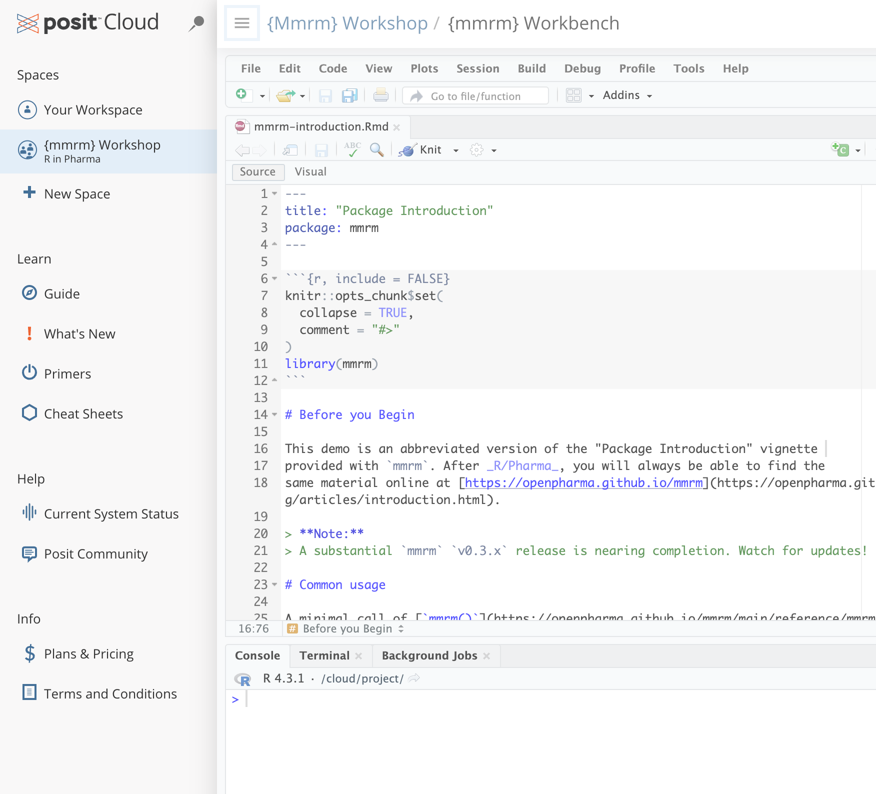

Short hands-on introduction to the mmrm package
- Working together across companies and in open source

Slides Available at

tinyurl.com/mmrm-workshop-slides

Key considerations for writing statistical R packages

Why does this matter in Pharma?

“The credibility of the numerical results of the analysis depends on the quality and validity of the methods and software (both internally and externally written) used both for data management […] and also for processing the data statistically. […] The computer software used for data management and statistical analysis should be reliable, and documentation of appropriate software testing procedures should be available.”

[ICH Topic E 9: Statistical Principles for Clinical Trials, Section 5.8: Integrity of Data and Computer Software Validity]

How can we achive this?

How can we implement statistical methods in R such that

the software is reliable and
includes appropriate testing

to ensure

high quality and
validity

and ultimately credibility of the statistical analysis results?

Take away lessons for writing statistical software

Choose the right methods and understand them.
Solve the core implementation problem with prototype code.
Spend enough time on planning the design of the R package.
Assume that your R package will be evolving for a long time.

Choose the right methods and understand them

Why is this important?

“The credibility of the numerical results of the analysis depends on the quality and validity of the methods and software …”

If we don’t choose the right method, then the best software implementation of it won’t help the credibility of the statistical analysis!
Work together with methods experts (internal, external, …)

How can we understand the statistical method?

We need to understand the method before implementing it!

It is not sufficient to just copy/paste code from methods experts
Let the methods experts present a summary of the methods
Read an overview paper about the methods
Paraphrase and ask lots of clarifying questions
Understand the details by reading the original paper describing the method

Example: `mmrm`

Understand the acronym: Mixed Model with Repeated Measures
Understand the method: It is not a mixed model, just a general linear model
- Read an overview paper
Understand the problem: In R we did not get the correct adjusted degrees of freedom
- Try out existing R packages and compare results with proprietary software
- Read paper describing the adjusted degrees of freedom

Example: `mmrm` (fast forward)

Initial implementation with lme4 workaround (see previous R/Pharma presentation)
Works only quite ok for small data sets with few time points
Does not converge and takes hours on large data sets with many time points
Therefore needed to look for another solution

Solve the core implementation problem with prototype code

What is prototype code?

Can come in different forms, but
- is not an R package yet,
- not documented with roxygen2,
- not unit tested
It works usually quite well to have an Rmd or qmd document to combine thoughts and code
Typically an R script from a methods expert that implements the method can be the start for a prototype

When have you solved the core implementation problem?

You have R code that allows you to (half-manually) calculate the results with the chosen methods
Different methods options have been elicited from experts, considered and could be used
You have evaluated different solution paths (e.g. using package A or package B as a backbone)
You feel that you have solved the hardest part of the problem - everything else is clear how to do it
(If possible) You have compared the numerical results from your R code with other software, and they match up to numerical accuracy (e.g. relative difference of 0.001)

Example: `mmrm` - try to use existing packages

The hardest part: adjusted degrees of freedom calculation
Tried different solutions with existing R packages:
- using package nlme with emmeans (results are too different, calculation is too approximate)
- using package lme4 with lmerTest (fails on large data sets with many time points)
- using package glmmTMB (does not have adjusted degrees of freedom)ß

Example: `mmrm` - try to extend existing package

Tried to extend glmmTMB to calculate Satterthwaite adjusted degrees of freedom:

Got in touch with glmmTMB authors and Ben Bolker provided great help and assistance
Unfortunately it did not work out (results were very far off for unstructed covariance)
Understand that glmmTMB always uses a random effects model representation which is not what we want

Example: `mmrm` - try to make a custom implementation

Idea was then to use the Template Model Builder (TMB) library directly:

As the name suggests, TMB is also used by glmmTMB as the backend
We can code with C++ the likelihood of the model we exactly need (general linear model without random effects)
The magic: TMB allows to automatically differentiate the (log) likelihood (i.e. by compiling the C++ code)
The gradient (and Hessian) can then be used from the R side to find the (restricted) maximum likelihood estimates
Within a long weekend, got a working prototype that was fast and matched proprietary software results nicely

Spend enough time on planning the design of the R-package

Why not jump into writing functions right away?

Need to see the “big picture” first to know how each piece should look like
- Including definition of the scope of the package - what should be included vs. not
- Important to discuss “big picture” plan with experts and users regarding workflow
When writing a function you should do it together with documentation and unit tests
- If you just start somewhere, chances are very high that you will need to change it later

How to plan the design of the R-package?

Start with blank sheet of paper to draw flow diagram
- What parts (functions and classes) can represent the problem most naturally?
Draft a bit more details in doc
- Which arguments for functions, which slots for classes? Names?
Go into Rmd design document and draft prototypes for functions and classes

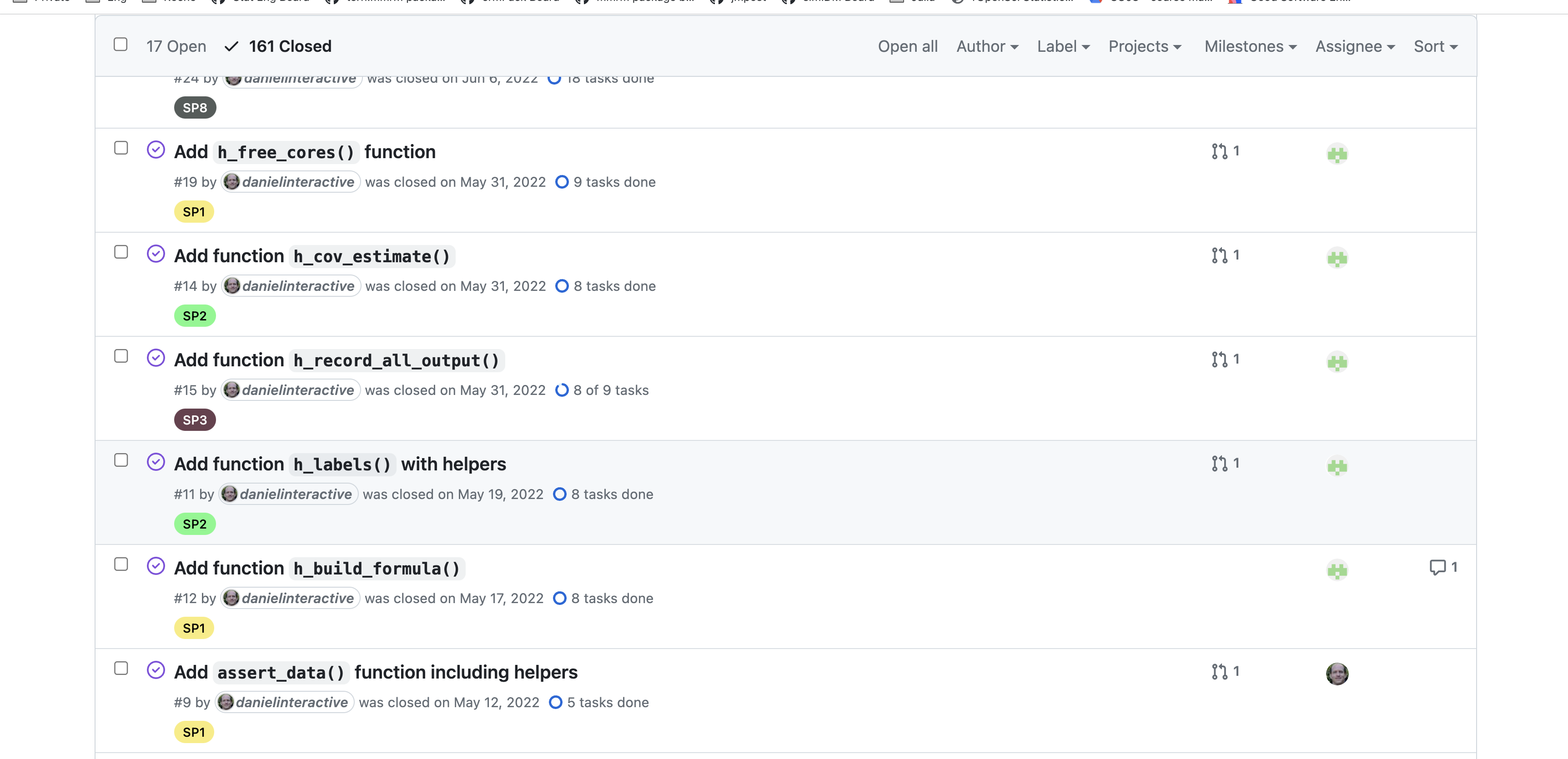

Break down design into separate issues (tasks) to implement
- Make notes of dependencies and resulting order of implementation

Example: `mmrm`

Have a single Rmd as initial design document including prototypes

---
title: "Design for fitting MMRM"
author: "Daniel Sabanes Bove"
output: html_document
editor_options:
  chunk_output_type: console
---

```{r setup, include=FALSE}
knitr::opts_chunk$set(echo = TRUE)
```

# Objective

We would like to prototype the whole flow of fitting an MMRM in this new package.
This will make subsequent issue solutions more efficient.

```{r}
library(mmrm)
library(checkmate)
library(glmmTMB)
```

# Example

Let's first set up some example.

```{r}
dat <- fev_data
vs <- list(
  response = "FEV1",
  covariates = c("RACE", "SEX"),
  id = "USUBJID",
  arm = "ARMCD",
  visit = "AVISIT"
)
```

# Prototypes

## `check_vars()` --> `h_labels()` and `assert_data()`

We try to simplify the function compared to the old code, using external helpers
and splitting up the function.

```{r}
h_is_specified <- function(x, vars) {
  !is.null(vars[[x]])
}
h_is_specified_and_in_data <- function(x, vars, data) {
  h_is_specified(x, vars) && all(vars[[x]] %in% names(data))
}
h_check_and_get_label <- function(x, vars, data) {
  assert_true(h_is_specified_and_in_data(x, vars, data))
  res <- NULL
  for (v in vars[[x]]) {
    label <- attr(data[[v]], "label")
    string <- ifelse(!is.null(label), label, v)
    res <- c(res, stats::setNames(string, v))
  }
  res
}
h_get_covariate_parts <- function(covariates) {
  unique(unlist(strsplit(covariates, split = "\\*|:")))
}
```

Let's quickly try these out:

```{r}
h_check_and_get_label("arm", vs, dat)
```

Let's have a separate `h_labels()` function. This is mostly checking
the variable specifications on the side, too.

```{r}
h_labels <- function(vars,
                     data) {
  assert_list(vars)
  assert_data_frame(data)

  labels <- list()

  labels$response <- h_check_and_get_label("response", vars, data)
  labels$id <- h_check_and_get_label("id", vars, data)
  labels$visit <- h_check_and_get_label("visit", vars, data)
  if (h_is_specified("arm", vars)) {
    h_check_and_get_label("arm", vars, data)
  }
  if (h_is_specified("covariates", vars)) {
    vars$parts <- h_get_covariate_parts(vars$covariates)
    labels$parts <- h_check_and_get_label("parts", vars, data)
  }

  return(labels)
}

h_labels(vs, dat)
```

Now let's do the check (assertion) function for the data.
Again let's brake it down into manageable pieces.

```{r}
h_assert_one_rec_pt_visit <- function(vars, data) {
  # Check there is no more than one record per patient and visit.
  form <- stats::as.formula(paste("~", vars$visit, "+", vars$id))
  grouped_data <- split(data, f = form)
  n_per_group <- vapply(grouped_data, nrow, integer(1))

  if (any(n_per_group > 1)) {
    dupl_group <- which(n_per_group > 1)
    n_dupl <- length(dupl_group)
    stop(paste(
      "There are", n_dupl, "subjects with more than one record per visit:",
      toString(names(n_dupl))
    ))
  }
}

h_assert_rsp_var <- function(vars, data) {
  response_values <- data[[vars$response]]
  assert_numeric(response_values)
}

h_assert_visit_var <- function(vars, data) {
  visit_values <- data[[vars$visit]]
  assert_factor(visit_values)
}

assert_data <- function(vars, data) {
  assert_list(vars)
  assert_data_frame(data)

  # First subset data to observations with complete regressors.
  regressor_vars <- c(vars$arm, vars$visit, h_get_covariate_parts(vars$covariates))
  has_complete_regressors <- stats::complete.cases(data[, regressor_vars])
  data_complete_regressors <- droplevels(data[has_complete_regressors, ])

  h_assert_one_rec_pt_visit(vars, data_complete_regressors)
  h_assert_rsp_var(vars, data_complete_regressors)
  h_assert_visit_var(vars, data_complete_regressors)

  # Second only look at complete data.
  has_complete_response <- stats::complete.cases(data_complete_regressors[, vars$response])
  data_complete <- droplevels(data_complete_regressors[has_complete_response, ])

  if (h_is_specified("arm", vars)) {
    assert_factor(data_complete_regressors[[vars$arm]], min.levels = 2L)
    assert_factor(
      data_complete[[vars$arm]],
      levels = levels(data_complete_regressors[[vars$arm]])
    )
    assert_true(all(table(data_complete[[vars$arm]]) > 5))
  } else {
    assert_data_frame(data_complete, min.rows = 5L)
  }
}
```

Note that in production the arm checking part could be also put into a
helper function to make the `assert_data()` function more consistent.

Now let's try this out, too.

```{r}
assert_data(vs, dat)
```


## `h_build_formula()`

Let's build the formula for the `glmmTMB` fit call. Basically we want something
like this:

`AVAL ~ STRATA1 + BMRKR2 + ARMCD + ARMCD + AVISIT + ARMCD * AVISIT + us(0 + AVISIT | USUBJID)`

where the `us` part would look different for covariance structures other than
this unstructured one.

For the `cor_struct` argument we keep a bit more higher level syntax than
`glmmTMB` itself, since e.g. `us` and `cs` could easily be confused by the user.

Note that for now we don't put in the option to have separate covariance matrices
per group yet, we can do this in a second pass later on (backlog).

```{r}
h_build_formula <- function(vars,
                            cor_struct = c(
                              "unstructured",
                              "toeplitz",
                              "auto-regressive",
                              "compound-symmetry"
                            )) {
  assert_list(vars)
  cor_struct <- match.arg(cor_struct)

  covariates_part <- paste(
    vars$covariates,
    collapse = " + "
  )
  arm_visit_part <- if (is.null(vars$arm)) {
    vars$visit
  } else {
    paste0(
      vars$arm,
      "*",
      vars$visit
    )
  }
  random_effects_fun <- switch(cor_struct,
    "unstructured" = "us",
    "toeplitz" = "toep",
    "auto-regressive" = "ar1",
    "compound-symmetry" = "cs"
  )
  random_effects_part <- paste0(
    random_effects_fun, "(0 + ", vars$visit, " | ", vars$id, ")"
  )
  rhs_formula <- paste(
    arm_visit_part,
    "+",
    random_effects_part
  )
  if (covariates_part != "") {
    rhs_formula <- paste(
      covariates_part,
      "+",
      rhs_formula
    )
  }
  stats::as.formula(paste(
    vars$response,
    "~",
    rhs_formula
  ))
}
```

Let's try this out:

```{r}
h_build_formula(vs, "toeplitz")
h_build_formula(vs)
```

## `h_cov_estimate()`

Let's see if we even need this function.

```{r}
mod <- glmmTMB(
  FEV1 ~ ar1(0 + AVISIT | USUBJID),
  data = dat,
  dispformula = ~0,
  REML = TRUE
)
vc <- VarCorr(mod)
vc$cond[[1]]
class(mod) <- c("mmrm_fit", "glmmTMB")
```

OK so that is still not super intuitive, so let's better have the function.
Especially as we also want to return how many variance parameters
there are. For backwards compatibility we also return one ID which had the
maximum number of visits. Maybe later we can remove this again.

```{r}
h_cov_estimate <- function(model) {
  assert_class(model, "mmrm_fit")

  cov_est <- VarCorr(model)$cond[[1L]]
  theta <- getME(model, "theta")
  id_per_obs <- model$modelInfo$reTrms$cond$flist[[1L]]
  n_visits <- length(model$modelInfo$reTrms$cond$cnms[[1L]])
  which_id <- which(table(id_per_obs) == n_visits)[1L]

  structure(
    cov_est,
    id = levels(id_per_obs)[which_id],
    n_parameters = length(theta)
  )
}

str(h_cov_estimate(mod))
```

Here we also get the standard deviations and the correlation matrix as
attributes but that seems useful.

## `h_record_all_output()`

This is direct copy, and then slightly modified, from `rbmi`.
Therefore we need to include its author (Craig) as contributors in `mmrm`.

```{r}
#' Capture all Output
#'
#' This function silences all warnings, errors & messages and instead returns a list
#' containing the results (if it didn't error) + the warning and error messages as
#' character vectors.
#'
#' @param expr (`expression`)\cr to be executed.
#' @param remove (`list`)\cr optional list with elements `warnings`, `errors`,
#'   `messages` which can be character vectors, which will be removed from the
#'   results if specified.
#'
#' @return
#' A list containing
#'
#' - `result`: The object returned by `expr` or `list()` if an error was thrown
#' - `warnings`: `NULL` or a character vector if warnings were thrown.
#' - `errors`: `NULL` or a string if an error was thrown.
#' - `messages`: `NULL` or a character vector if messages were produced.
#'
#' @examples
#' \dontrun{
#' h_record_all_output({
#'   x <- 1
#'   y <- 2
#'   warning("something went wrong")
#'   message("O nearly done")
#'   x + y
#' })
#' }
h_record_all_output <- function(expr, remove = list()) {
  # Note: We don't need to and cannot assert `expr` here.
  assert_list(remove)

  env <- new.env()
  result <- withCallingHandlers(
    withRestarts(
      expr,
      muffleStop = function() list()
    ),
    message = function(m) {
      msg_without_newline <- gsub(m$message, pattern = "\n$", replacement = "")
      env$message <- c(env$message, msg_without_newline)
      invokeRestart("muffleMessage")
    },
    warning = function(w) {
      env$warning <- c(env$warning, w$message)
      invokeRestart("muffleWarning")
    },
    error = function(e) {
      env$error <- c(env$error, e$message)
      invokeRestart("muffleStop")
    }
  )
  list(
    result = result,
    warnings = setdiff(env$warning, remove$warnings),
    errors = setdiff(env$error, remove$errors),
    messages = setdiff(env$message, remove$messages)
  )
}

h_record_all_output(
  {
    x <- 1
    y <- 2
    warning("something went wrong")
    message("O nearly done")
    message("Almost done")
    x + y
  },
  remove = list(messages = c("Almost done", "bla"))
)
```


## `fit_single_optimizer()`

Here the optimizers are possible multivariate ones for `stats::optim()`, with
the default changed to `L-BFGS-B`. Note that we removed the `SANN` option since
that needs very long computation times, so does not seem practical.

We provide the new possibility for starting values.

While this function is not the primary user interface, it can be helpful for users.
Therefore we don't prefix with `h_`.

```{r}
fit_single_optimizer <- function(formula,
                                 data,
                                 start = NULL,
                                 optimizer = c("L-BFGS-B", "Nelder-Mead", "BFGS", "CG")) {
  assert_formula(formula)
  assert_data_frame(data)
  assert_list(start, null.ok = TRUE)
  optimizer <- match.arg(optimizer)

  control <- glmmTMB::glmmTMBControl(
    optimizer = stats::optim,
    optArgs = list(method = optimizer),
    parallel = 1L
  )
  quiet_fit <- h_record_all_output(
    glmmTMB::glmmTMB(
      formula = formula,
      data = data,
      dispformula = ~0,
      REML = TRUE,
      start = start,
      control = control
    ),
    remove = list(
      warnings = c(
        "OpenMP not supported.",
        "'giveCsparse' has been deprecated; setting 'repr = \"T\"' for you"
      )
    )
  )
  converged <- (length(quiet_fit$warnings) == 0L) &&
    (length(quiet_fit$errors) == 0L) &&
    (quiet_fit$result$fit$convergence == 0)
  structure(
    quiet_fit$result,
    errors = quiet_fit$errors,
    warnings = quiet_fit$warnings,
    messages = quiet_fit$messages,
    optimizer = optimizer,
    converged = converged,
    class = c("mmrm_fit", class(quiet_fit$result))
  )
}
```

OK let's try this one out:

```{r}
mod_fit <- fit_single_optimizer(
  formula = h_build_formula(vs),
  data = dat
)
attr(mod_fit, "converged")
```

Looks good so far!

## `h_summarize_all_fits()`

Note that we don't return the fixed effects as that is not used downstream.

```{r}
h_summarize_all_fits <- function(all_fits) {
  assert_list(all_fits)

  warnings <- lapply(all_fits, attr, which = "warnings")
  messages <- lapply(all_fits, attr, which = "messages")
  log_liks <- vapply(all_fits, stats::logLik, numeric(1L))
  converged <- vapply(all_fits, attr, logical(1), which = "converged")

  list(
    warnings = warnings,
    messages = messages,
    log_liks = log_liks,
    converged = converged
  )
}

h_summarize_all_fits(list(mod_fit, mod_fit))
```

## `h_free_cores()`

This is from the `tern.mmrm` package. Since Daniel wrote this function and
we will take it out of `tern.mmrm` before publishing no further author
implications.

Note that we will need to add the `parallel` and `utils` packages to `Imports`.

```{r}
#' Get an approximate number of free cores.
#'
#' @return the approximate number of free cores, which is an integer between 1 and one less than
#'   the total cores.
#'
#' @details This uses the maximum load average at 1, 5 and 15 minutes on Linux and Mac
#'   machines to approximate the number of busy cores. For Windows, the load percentage is
#'   multiplied with the total number of cores.
#'   We then subtract this from the number of all detected cores. One additional core
#'   is not used for extra safety.
#'
#' @noRd
h_free_cores <- function() {
  all_cores <- parallel::detectCores(all.tests = TRUE)
  busy_cores <-
    if (.Platform$OS.type == "windows") {
      load_percent_string <- system("wmic cpu get loadpercentage", intern = TRUE)
      # This gives e.g.: c("LoadPercentage", "10", "")
      # So we just take the number here.
      load_percent <- as.integer(min(load_percent_string[2L], 100))
      assert_int(load_percent, lower = 0, upper = 100)
      ceiling(all_cores * load_percent / 100)
    } else if (.Platform$OS.type == "unix") {
      uptime_string <- system("uptime", intern = TRUE)
      # This gives e.g.:
      # "11:00  up  1:57, 3 users, load averages: 2.71 2.64 2.62"
      # Here we just want the last three numbers.
      uptime_split <- strsplit(uptime_string, split = ",|\\s")[[1]] # Split at comma or white space.
      uptime_split <- uptime_split[uptime_split != ""]
      load_averages <- as.numeric(utils::tail(uptime_split, 3))
      ceiling(max(load_averages))
    }
  assert_number(all_cores, lower = 1, finite = TRUE)
  assert_number(busy_cores, lower = 0, upper = all_cores)

  # For safety, we subtract 1 more core from all cores.
  as.integer(max(1, all_cores - busy_cores - 1))
}

h_free_cores()
```

Right now e.g. I have total 16 cores, and I get 14 returned by this function
which makes sense (1 is busy, and 1 is extra buffer).

## `refit_multiple_optimizers()`

```{r}
refit_multiple_optimizers <- function(fit,
                                      n_cores = 1L,
                                      optimizers = c("L-BFGS-B", "Nelder-Mead", "BFGS", "CG")) {
  assert_class(fit, "mmrm_fit")
  assert_int(n_cores, lower = 1L)
  optimizers <- match.arg(optimizers, several.ok = TRUE)

  # Extract the components of the original fit.
  old_formula <- stats::formula(fit)
  old_data <- fit$frame
  old_optimizer <- attr(fit, "optimizer")

  # Settings for the new fits.
  optimizers <- setdiff(optimizers, old_optimizer)
  n_cores_used <- ifelse(
    .Platform$OS.type == "windows",
    1L,
    min(
      length(optimizers),
      n_cores
    )
  )

  all_fits <- parallel::mclapply(
    X = optimizers,
    FUN = fit_single_optimizer,
    formula = old_formula,
    data = old_data,
    start = list(theta = fit$fit$par), # Take the results from old fit as starting values.
    mc.cores = n_cores_used,
    mc.silent = TRUE
  )
  names(all_fits) <- optimizers
  all_fits_summary <- h_summarize_all_fits(all_fits)

  # Find the results that are ok:
  is_ok <- all_fits_summary$converged
  if (!any(is_ok)) {
    stop(
      "No optimizer led to a successful model fit. ",
      "Please try to use a different covariance structure or other covariates."
    )
  }

  # Return the best result in terms of log-likelihood.
  best_optimizer <- names(which.max(all_fits_summary$log_liks[is_ok]))
  best_fit <- all_fits[[best_optimizer]]
  return(best_fit)
}
```

OK, let's try this out. Say we don't converge with the first optimizer choice,
and then want to run multiple ones.

```{r}
mod_fit <- fit_single_optimizer(
  formula = h_build_formula(vs),
  data = dat,
  optimizer = "Nelder-Mead"
)
attr(mod_fit, "converged")
attr(mod_fit, "warnings")
```

So Nelder-Mead does not converge, and we see a non-positive-definite Hessian
warning.
Now we put this into the refit function:

```{r}
mod_refit <- refit_multiple_optimizers(mod_fit)
```

## `fit_model()`

This is wrapping the lower level fitting functions (single and multiple optimizers).

```{r}
fit_model <- function(formula,
                      data,
                      optimizer = "automatic",
                      n_cores = 1L) {
  assert_string(optimizer)
  use_automatic <- identical(optimizer, "automatic")

  fit <- fit_single_optimizer(
    formula = formula,
    data = data,
    optimizer = ifelse(use_automatic, "L-BFGS-B", optimizer)
  )

  if (attr(fit, "converged")) {
    fit
  } else if (use_automatic) {
    refit_multiple_optimizers(fit, n_cores = n_cores)
  } else {
    all_problems <- unlist(
      attributes(fit)[c("errors", "messages", "warnings")],
      use.names = FALSE
    )
    stop(paste0(
      "Chosen optimizer '", optimizer, "' led to problems during model fit:\n",
      paste(paste0(seq_along(all_problems), ") ", all_problems), collapse = ";\n"), "\n",
      "Consider using the 'automatic' optimizer."
    ))
  }
}
```

Let's try this out quickly too:

```{r}
testthat::expect_error(fit_model(
  formula = h_build_formula(vs),
  data = dat,
  optimizer = "Nelder-Mead"
))
```

So this gives the expected error message.

```{r}
mod_fit2 <- fit_model(
  formula = h_build_formula(vs),
  data = dat,
  optimizer = "BFGS"
)
```

And this works.

## `vars()`

Just a little user interface list generator for the variables to use in `mmrm()`.

```{r}
vars <- function(response = "AVAL",
                 covariates = c(),
                 id = "USUBJID",
                 arm = "ARM",
                 visit = "AVISIT") {
  list(
    response = response,
    covariates = covariates,
    id = id,
    arm = arm,
    visit = visit
  )
}

vars()
```

## `h_vcov_theta()`

This helper function returns the covariance estimate for the variance parameters
(`theta`) of the fitted MMRM.

```{r}
h_vcov_theta <- function(model) {
  assert_class(model, "mmrm_fit")

  model_vcov <- vcov(model, full = TRUE)
  theta <- getME(model, "theta")
  index_theta <- seq(to = nrow(model_vcov), length = length(theta))

  unname(model_vcov[index_theta, index_theta, drop = FALSE])
}

vcov_theta <- h_vcov_theta(mod_refit)
```

However one question is now which `theta` parametrization is used here
to provide the covariance matrix of. Because it is strange that these two
are not the same:

```{r}
mod_refit$obj$par
mod_refit$fit$par
```

It could be that the first one are the starting values for the optimization.
Indeed:

```{r}
identical(mod_fit$fit$par, mod_refit$obj$par)
```

## `h_num_vcov_theta()`

Let's see anyway if we can recover this covariance matrix also numerically:

```{r}
h_num_vcov_theta <- function(model) {
  assert_class(model, "mmrm_fit")

  theta_est <- model$fit$par
  devfun_theta <- model$obj$fn
  hess_theta <- numDeriv::hessian(func = devfun_theta, x = theta_est)
  eig_hess_theta <- eigen(hess_theta, symmetric = TRUE)
  with(eig_hess_theta, vectors %*% diag(1 / values) %*% t(vectors))
}

num_vcov_theta <- h_num_vcov_theta(mod_refit)
all.equal(vcov_theta, num_vcov_theta)
range(vcov_theta / num_vcov_theta)
```

So the results are quite different.

## `h_covbeta_fun()`

For below we need to construct a function `covbeta_fun` calculating
the covariance matrix for the fixed effects (`beta`) as a function of the
variance parameters.

```{r}
h_covbeta_fun <- function(model) {
  assert_class(model, "mmrm_fit")

  function(theta) {
    sdr <- TMB::sdreport(
      model$obj,
      par.fixed = theta,
      getJointPrecision = TRUE
    )
    q_mat <- sdr$jointPrecision
    which_fixed <- which(rownames(q_mat) == "beta")
    q_marginal <- glmmTMB:::GMRFmarginal(q_mat, which_fixed)
    unname(solve(as.matrix(q_marginal)))
  }
}
```

Let's try this out: We can recover the usual variance-covariance matrix of the
fixed effects when plugging in the estimated variance parameters (up to
reasonable numeric precision), and we get a different result when using
other variance parameters.

```{r}
covbeta_fun <- h_covbeta_fun(mod_refit)
mod_theta_est <- getME(mod_refit, "theta")
covbeta_num <- covbeta_fun(theta = mod_theta_est)
covbeta_fit <- unname(vcov(mod_refit)$cond)
all.equal(covbeta_num, covbeta_fit)
range(covbeta_num / covbeta_fit)
range(covbeta_num - covbeta_fun(theta = mod_theta_est * 0.9))
```

## `h_general_jac_list()`

We also need to compute the jacobian, and organize it as a list.

We start with a general helper that takes a function `covbeta_fun` (see above),
as well as `x_opt` which is the variance parameter estimate.

```{r}
h_general_jac_list <- function(covbeta_fun,
                               x_opt,
                               ...) {
  assert_function(covbeta_fun, nargs = 1L)
  assert_numeric(x_opt, any.missing = FALSE, min.len = 1L)

  jac_matrix <- numDeriv::jacobian(
    func = covbeta_fun,
    x = x_opt,
    # Note: No need to specify further `methods.args` here.
    ...
  )
  get_column_i_as_matrix <- function(i) {
    # This column contains the p x p entries.
    jac_col <- jac_matrix[, i]
    p <- sqrt(length(jac_col))
    # Obtain p x p matrix.
    matrix(jac_col, nrow = p, ncol = p)
  }
  lapply(
    seq_len(ncol(jac_matrix)),
    FUN = get_column_i_as_matrix
  )
}
```

Let's try this out, too:

```{r}
jac_example <- h_general_jac_list(covbeta_fun, mod_theta_est)
```

So this takes a few seconds to generate. However this is still in the same
ballpark as the fitting of the MMRM itself, so should not be practical problem.

## `h_jac_list()`

Now we can wrap this in a function that takes the fitted MMRM directly and
returns the Jacobian.

```{r}
h_jac_list <- function(model) {
  covbeta_fun <- h_covbeta_fun(model)
  theta_est <- getME(model, "theta")
  h_general_jac_list(covbeta_fun = covbeta_fun, x_opt = theta_est)
}

jac_list <- h_jac_list(mod_refit)
```

## `mmrm()`

This is the primary user interface for performing the MMRM analysis. It returns
an object of class `mmrm` and further methods are provided then to work with
these objects (summary, least square means, etc.)

Note that since the least square means and model diagnostics are downstream
calculations, we no longer include them in the object itself.

```{r}
mmrm <- function(data,
                 vars = vars(),
                 conf_level = 0.95,
                 cor_struct = "unstructured",
                 weights_emmeans = "proportional",
                 optimizer = "automatic",
                 parallel = FALSE) {
  assert_data(vars, data)
  assert_number(conf_level, lower = 0, upper = 1)
  assert_flag(parallel)

  labels <- h_labels(vars, data)
  formula <- h_build_formula(vars, cor_struct)
  model <- fit_model(
    formula = formula,
    data = data,
    optimizer = optimizer,
    n_cores = ifelse(parallel, h_free_cores(), 1L)
  )
  vcov_theta <- h_num_vcov_theta(model)
  jac_list <- h_jac_list(model)
  vcov_beta <- vcov(model)$cond
  beta_est <- fixef(model)$cond
  cov_est <- h_cov_estimate(model)
  ref_level <- if (is.null(vars$arm)) NULL else levels(data[[vars$arm]])[1]

  results <- list(
    model = model,
    vcov_theta = vcov_theta,
    jac_list = jac_list,
    vcov_beta = vcov_beta,
    beta_est = beta_est,
    cov_est = cov_est,
    vars = vars,
    labels = labels,
    ref_level = ref_level,
    conf_level = conf_level
  )
  class(results) <- "mmrm"
  results
}
```

Let's try this out:

```{r}
result <- mmrm(dat, vs)
```

Takes about 13 seconds on my computer here, so that is alright.

## `diagnostics()`

Now we want to compute the model diagnostic statistics. Note that here
we start now from the full `mmrm` object which already has the covariance
estimate, so we don't need to compute this again.

Note: In production this can be a generic function with a method for `mmrm`.

```{r}
diagnostics <- function(object) {
  assert_class(object, "mmrm")

  n_obs <- object$model$modelInfo$nobs
  cov_est <- object$cov_est
  df <- attr(cov_est, "n_parameters")
  n_fixed <- ncol(getME(object$model, "X"))
  m <- max(df + 2, n_obs - n_fixed)
  log_lik <- as.numeric(stats::logLik(object$model))
  n_subjects <- nlevels(object$model$modelInfo$reTrms$cond$flist[[1L]])

  list(
    "REML criterion" = -2 * log_lik,
    AIC = -2 * log_lik + 2 * df,
    AICc = -2 * log_lik + 2 * df * (m / (m - df - 1)),
    BIC = -2 * log_lik + df * log(n_subjects)
  )
}

diagnostics(result)
```

## `h_quad_form_vec()`

Just a small numeric helper to compute a quadratic form of a vector
and a matrix.

```{r}
# Calculates x %*% mat %*% t(x) efficiently if x is a (row) vector.
h_quad_form_vec <- function(x, mat) {
  assert_numeric(x, any.missing = FALSE)
  assert_matrix(mat, mode = "numeric", any.missing = FALSE, nrows = length(x), ncols = length(x))
  sum(x * (mat %*% x))
}

h_quad_form_vec(1:2, matrix(1:4, 2, 2))
```

## `h_gradient()`

This is the helper to compute the gradient based on a jacobian (as a list, as above)
and a vector `L`.

```{r}
h_gradient <- function(jac_list, L) {
  assert_list(jac_list)
  assert_numeric(L)

  vapply(
    jac_list,
    h_quad_form_vec, # = {L' Jac L}_i
    x = L,
    numeric(1L)
  )
}

L <- c(-1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0)
h_gradient(jac_example, L)
```

## `h_df_1d_list()`

Little helper function to format results of `df_1d()`.

```{r}
h_df_1d_list <- function(est, se, v_num, v_denom) {
  t_stat <- est / se
  df <- v_num / v_denom
  pval <- 2 * pt(q = abs(t_stat), df = df, lower.tail = FALSE)

  list(
    est = est,
    se = se,
    df = df,
    t_stat = t_stat,
    pval = pval
  )
}
```

## `df_1d()`

We define this function to calculate the Satterthwaite degrees of freedom for the
one-dimensional case. It takes the `mmrm` object and the contrast matrix (here
vector).

```{r}
df_1d <- function(object, L) {
  assert_class(object, "mmrm")
  assert_numeric(L, any.missing = FALSE)

  L <- as.vector(L)
  assert_numeric(L, len = length(object$beta_est))
  contrast_est <- sum(L * object$beta_est)
  contrast_var <- h_quad_form_vec(L, object$vcov_beta)
  contrast_grad <- h_gradient(object$jac_list, L)

  v_numerator <- 2 * contrast_var^2
  v_denominator <- h_quad_form_vec(contrast_grad, object$vcov_theta)

  h_df_1d_list(
    est = contrast_est,
    se = sqrt(contrast_var),
    v_num = v_numerator,
    v_denom = v_denominator
  )
}
```

Let's try it out:

```{r}
df_1d(result, L)
```

Let's quickly compare this with the existing `tern.mmrm` just to be sure
that this is correct:

```{r}
old_result <- tern.mmrm::fit_mmrm(vars = vs, data = dat)
all.equal(result$beta_est, fixef(old_result$fit))
lmerTest::contest1D(old_result$fit, L)
```

So unfortunately that the degrees of freedom results are very far apart.
The question is why?

Let's look inside:

```{r}
# debug(lmerTest:::contest1D.lmerModLmerTest)
lmerTest::contest1D(old_result$fit, L)
```

The denominator of the degrees of freedom is 0.0213 so completely different
than what we have above with 11.93. The numerator of the degrees of freedom
is 5.303 which is similar what we have with 5.425.

Now for the denominator the problem is again that the parametrization is
different between `lme4` and `glmmTMB` so that we cannot compare directly
the inputs, i.e. the gradient for the variance of the contrast evaluated
at the variance parameter estimates, and the covariance matrix for variance
parameters.

Let's quickly try another path to obtain the gradient numerically.
We write directly the contrast variance estimate as a function of `theta`.

```{r}
h_contrast_var_fun <- function(model, L) {
  covbeta_fun <- h_covbeta_fun(model)
  function(theta) {
    covbeta <- covbeta_fun(theta)
    h_quad_form_vec(L, covbeta)
  }
}

contrast_var_fun <- h_contrast_var_fun(result$model, L)
sqrt(contrast_var_fun(mod_theta_est))
```

OK, this matches what we have above.
Now we can calculate the gradient again using `numDeriv`:

```{r}
num_grad_contrast_var <- numDeriv::grad(contrast_var_fun, mod_theta_est)
```

It is interesting that this takes quite a while to compute.

Now we can compare this with what we have via the Jacobian:

```{r}
contrast_grad <- h_gradient(result$jac_list, L)
all.equal(num_grad_contrast_var, contrast_grad)
num_grad_contrast_var - contrast_grad
```

So this is actually quite different. But even then we would get as
denominator:

```{r}
num_v_denom <- h_quad_form_vec(num_grad_contrast_var, result$vcov_theta)
num_v_denom
```

which is not what we expect. But on the other hand

```{r}
1 / num_v_denom
```

is very close to what we would expect? But I don't understand why at all.

The other problem to debug this now here is that for the `lme4` model we have 11
variance parameters (one too much), whereas for `glmmTMB` we only have 10.
So we cannot easily transform the variance parameters into each other.

The problem is that obviously the `glmmTMB` derived degrees of freedom are
wrong. We can e.g. have another comparison via simplified degrees of freedom:

```{r}
simple_df <- length(unique(result$model$frame$USUBJID)) -
  Matrix::rankMatrix(model.matrix(FEV1 ~ RACE + SEX + ARMCD * AVISIT, data = dat))[1]
simple_df
```

which is at least in a similar ballpark.

Temporary conclusion: It seems that `h_covbeta_fun()` is not accurate enough.
We will replace this as soon as possible with an improved version. The flow
of the code and the other functions can stay however. Therefore we proceed
as planned.

## `h_quad_form_mat()`

Just another helper to compute a quadratic form of a matrix and another matrix.

```{r}
# Calculates x %*% mat %*% t(x) efficiently if x is a matrix.
h_quad_form_mat <- function(x, mat) {
  assert_matrix(x, mode = "numeric", any.missing = FALSE)
  assert_matrix(mat, mode = "numeric", any.missing = FALSE, nrows = ncol(x), ncols = ncol(x))
  x %*% tcrossprod(mat, x)
}

h_quad_form_mat(
  x = matrix(1:2, 1, 2),
  mat = matrix(1:4, 2, 2)
)
```

## `h_df_md_list()`

Little helper function to format results of `df_md()`.

```{r}
h_df_md_list <- function(f_stat, num_df, denom_df, scale = 1) {
  f_stat <- f_stat * scale
  pval <- pf(q = f_stat, df1 = num_df, df2 = denom_df, lower.tail = FALSE)

  list(
    num_df = num_df,
    denom_df = denom_df,
    f_stat = f_stat,
    pval = pval
  )
}
```

## `h_md_denom_df()`

This helper computes the denominator degrees of freedom for the F-statistic,
when derived from squared t-statistics. If the input values are two similar to
each other then just the average is returned.

```{r}
h_md_denom_df <- function(t_stat_df) {
  assert_numeric(t_stat_df, min.len = 1L, lower = .Machine$double.xmin, any.missing = FALSE)
  if (test_scalar(t_stat_df)) {
    return(t_stat_df)
  }
  if (all(abs(diff(t_stat_df)) < 1e-8)) {
    return(mean(t_stat_df))
  }
  if (any(t_stat_df <= 2)) {
    2
  } else {
    E <- sum(t_stat_df / (t_stat_df - 2))
    2 * E / (E - (length(t_stat_df)))
  }
}

h_md_denom_df(1:5)
h_md_denom_df(c(2.5, 4.6, 2.3))
```

## `df_md()`

We define this function to calculate the Satterthwaite degrees of freedom for
the multi-dimensional case. It takes the `mmrm` object and the contrast matrix
(here vector).

```{r}
df_md <- function(object, L) {
  assert_class(object, "mmrm")
  assert_numeric(L, any.missing = FALSE)

  if (!is.matrix(L)) {
    L <- matrix(L, ncol = length(L))
  }
  assert_matrix(L, ncol = length(object$beta_est))

  # Early return if we are in the one-dimensional case.
  if (identical(nrow(L), 1L)) {
    res_1d <- df_1d(object, L)
    return(h_df_md_list(f_stat = res_1d$t_stat^2, num_df = 1, denom_df = res_1d$df))
  }

  contrast_cov <- h_quad_form_mat(L, object$vcov_beta)
  eigen_cont_cov <- eigen(contrast_cov)
  eigen_cont_cov_vctrs <- eigen_cont_cov$vectors
  eigen_cont_cov_vals <- eigen_cont_cov$values

  eps <- sqrt(.Machine$double.eps)
  tol <- max(eps * eigen_cont_cov_vals[1], 0)
  rank_cont_cov <- sum(eigen_cont_cov_vals > tol)
  assert_number(rank_cont_cov, lower = .Machine$double.xmin)
  rank_seq <- seq_len(rank_cont_cov)
  vctrs_cont_prod <- crossprod(eigen_cont_cov_vctrs, L)[rank_seq, , drop = FALSE]

  # Early return if rank 1.
  if (identical(rank_cont_cov, 1L)) {
    res_1d <- df_1d(object, L)
    return(h_df_md_list(f_stat = res_1d$t_stat^2, num_df = 1, denom_df = res_1d$df))
  }

  t_squared_nums <- drop(vctrs_cont_prod %*% result$beta_est)^2
  t_squared_denoms <- eigen_cont_cov_vals[rank_seq]
  t_squared <- t_squared_nums / t_squared_denoms
  f_stat <- sum(t_squared) / rank_cont_cov
  grads_vctrs_cont_prod <- lapply(rank_seq, \(m) h_gradient(result$jac_list, L = vctrs_cont_prod[m, ]))
  t_stat_df_nums <- 2 * eigen_cont_cov_vals^2
  t_stat_df_denoms <- vapply(grads_vctrs_cont_prod, h_quad_form_vec, mat = object$vcov_theta, numeric(1))
  t_stat_df <- t_stat_df_nums / t_stat_df_denoms
  denom_df <- h_md_denom_df(t_stat_df)

  h_df_md_list(
    f_stat = f_stat,
    num_df = rank_cont_cov,
    denom_df = denom_df
  )
}

L2 <- rbind(
  c(-1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0),
  c(0, -1, 1, 0, 0, 0, 0, 0, 0, 0, 0)
)
df_md(result, L2)
df_md(result, L)
```

## `recover_data` method

Here the idea is that we just forward directly to the `glmmTMB` method so
that we don't have to do anything ourselves.

```{r}
library(emmeans)
recover_data.mmrm <- function(object, ...) {
  component <- "cond"
  emmeans::recover_data(object$model, component = "cond", ...)
}
```

Let's try if this does something.

```{r}
test <- recover_data(result)
class(test)
dim(test)
```

So that seems to work fine.

## `emm_basis` method

Also here the majority of the work can be done by the `glmmTMB` method.
We just need to replace the `dffun` and `dfargs` in the list that is returned
by that before returning ourselves. For this we look at the `merMod` method in
`emmeans` (https://github.com/rvlenth/emmeans/blob/0af291a78eaecb9e22f45b5ec064474f5f5ed61a/R/helpers.R#L192).

```{r}
emm_basis.mmrm <- function(object, trms, xlev, grid, vcov., ...) {
  res <- emm_basis(object$model, trms = trms, xlev = xlev, grid = grid, vcov. = vcov., component = "cond", ...)
  dfargs <- list(object = object)
  dffun <- function(k, dfargs) {
    # Note: Once this is `df_md` function is in the package we can just get
    # it from there instead from global environment.
    get("df_md", envir = globalenv())(dfargs$object, k)$denom_df
  }
  res$dfargs <- dfargs
  res$dffun <- dffun
  res
}
```

Now let's see if we can use `emmeans` on the `mmrm` object:

```{r}
emm_obj <- emmeans(result, c("ARMCD", "AVISIT"), data = dat)
emm_obj
```

So that gives different result than calling directly the `glmmTMB` method:

```{r}
emm_obj2 <- emmeans(result$model, c("ARMCD", "AVISIT"), data = dat)
emm_obj2
```

So our own degrees of freedom are used successfully!

Based on this we can then calculate any least square means, e.g.:

```{r}
pairs(emm_obj)
```

Note that we have numerical problems here because of the wrong Satterthwaite
calculations at this point. But all this will be fixed when `h_covbeta_fun()`
is fixed.

Example: `mmrm` (cont’d)

Have separate issues and corresponding pull requests implementing functions

Assume your R-package is evolving for a long time

Why should we document the methods?

It is important to add method documentation in your package, typically as a vignette
This provides the “glue” between the original methods paper and your implementation in code
- different mathematical symbols compared to original paper but that match the code variable names
- specific details on the algorithm
Users benefit from this method documentation a lot because they can understand what is going on in your package
Developers will depend on the method documentation when adding new method features and to understand the code

Why do we need tests?

It is 100% guaranteed that users will have new feature requests after the first version of the R package has been released
- This is a good sign - the package is being used and your users have good ideas!
It is also very likely that some of the packages you depend on will change - but you want to be sure your package still works
- incl. integration tests, making sure numerical results are still correct
So you will need to change the code …
- … but you can only do that comfortably if you know that the package still works afterwards
- If the tests pass you know it still works!

How can I make the package extensible?

“Extensible” = others can extend it without changing package code
You want to make your package extensible so that you or other developers can easily extend it
Prefer to combine multiple functions in pipelines (similar as typically done in tidyverse)
Prefer object oriented package designs because it will help a lot the extensibility
Generally avoid functions with many arguments or longer than 50 lines of code

Example: `mmrm` - method documentation

Started with handwritten notes of the algorithm implementation for the prototype
Translated that into vignette
Has been updated many times already when algorithm was updated
Meanwhile have in total 12 different vignettes on different aspects

Example: `mmrm` - tests

Add tests, code documentation and method documentation during each pull request for each function
- Add integration tests comparing numerical results with numbers sourced from proprietary software
- Some tests can take longer, if run time becomes an issue can skip them on CRAN
Turned out tests were super important because minor C++ changes could break results on different operating system

Example: `mmrm` - extensibility

This is a typical “model fitting” package and therefore we use the S3 class system
- Over time can add interfaces to other modeling packages (more later)

Introduction to the `mmrm` package

Installation

CRAN as usual: install.packages("mmrm")
- Lags a bit behind at the moment (due to CRAN manual review bottleneck)
GitHub as usual: remotes::install_github("openpharma/mmrm")
- But needs C++ toolchain and can take quite a while to compile
R-Universe: https://openpharma.r-universe.dev/mmrm and download the binary package and install afterwards
- Somehow the install.packages() path from R does not find the binaries

Features of `mmrm` (>= 0.3)

Linear model for dependent observations within independent subjects
Covariance structures for the dependent observations:
- Unstructured, Toeplitz, AR1, compound symmetry, ante-dependence, spatial exponential
- Allows group specific covariance estimates and weights
REML or ML estimation, using multiple optimizers if needed
Robust sandwich estimator for covariance
Degrees of freedom adjustments: Satterthwaite, Kenward-Roger, Kenward-Roger-Linear, Between-Within, Residual

Ecosystem integration

emmeans interface for least square means
tidymodels for easy model fitting:
- Dedicated parsnip engine for linear regression
- Integration with recipes
NEST family for clinical trial reporting:
- tern.mmrm to easily generate common tables and plot (coming to CRAN soon)
- teal.modules.clinical to easily spin up Shiny app based on the teal framework (coming to CRAN soon)
Provided by third party packages (remember the extensibility discussion):
- interfaces to insight, parameters

Unit and integration testing

Unit tests can be found in the GitHub repository under ./tests.
Uses the testthat framework with covr to communicate the testing coverage.
- Coverage above 95%
- Also include tests for key C++ functions
The integration tests in mmrm are set to a standard tolerance of \(10^{-3}\) when compared to other software outputs
- Comparison with SAS results (PROC MIXED)
- Comparison with relevant R packages

Benchmarking with other R packages

Compared mmrm::mmrm with nlme::gls, lme4::lmer, glmmTMB::glmmTMB
Highlights:
- mmrm has faster convergence time
  - Using FEV dataset as an example, mmrm took ~50 ms, while lmer ~200 ms, gls and glmmTMB >600 ms
- mmrm and gls estimates have smaller differences from SAS PROC GLIMMIX estimates
- mmrm and gls are more resilient to missingness
Detailed results at the online comparison vignette

Impact of `mmrm`

CRAN downloads: around 100 per day in Oct 2023
- https://cran.r-project.org/web/packages/mmrm/
- new CRAN release v0.3 coming any day now!
GitHub repository: 73 stars as of 17 Oct 2023
- https://github.com/openpharma/mmrm
Part of CRAN clinical trials task view

Outlook

mmrm is now relatively complete for mostly needed features
We still have a few major ideas on our backlog:
- Type II and Type III ANOVA tests
- Evaluate adding (simple) random effects
Please let us know what is missing in mmrm for you!

Hands-On Demo Time!

Demo Instructions

Head to tinyurl.com/mmrm-workshop
Open the “{mmrm} Workbench” Space
Open the mmrm-introduction.Rmd

Open source development across companies

Introducing `openstatsware`

Founded last year:

When: 19 August 2022 - just celebrated our 1 year birthday!
Where: American Statistical Association (ASA) Biopharmaceutical Section (BIOP)
Initially: 11 statisticians from 7 pharma companies developing statistical software
New name: openstatsware

`mmrm` was our first workstream

Why is the MMRM topic important?
- MMRM is a popular analysis method for longitudinal continuous outcomes in randomized clinical trials
- Also used as backbone for more recent methods such as multiple imputation
See also our second workstream that produced brms.mmrm
- Bayesian inference in MMRM, based on brms (as Stan frontend for HMC sampling)

Human success factors

Mutual interest and mutual trust
Prerequisite is getting to know each other
- Although mostly just online, biweekly calls help a lot with this
Reciprocity mindset
- “Reciprocity means that in response to friendly actions, people are frequently much nicer and much more cooperative than predicted by the self-interest model”
- Personal experience: If you first give away something, more will come back to you.

Be inclusive in the development

Important to go public as soon as possible
- We did not wait for mmrm to be finished before initial open sourcing
- Many developers contributed over time
Building software together works better than alone
- Different perspectives in discussions and code review help to optimize the user interface and thus experience
- Be generous with authorship

Practical daily development process

Let’s take a look at what it looks like in action.

Case Study: simulate() feature We’ll follow the addition of a major v0.3.0 feature, tracking its progress our team’s workflow.

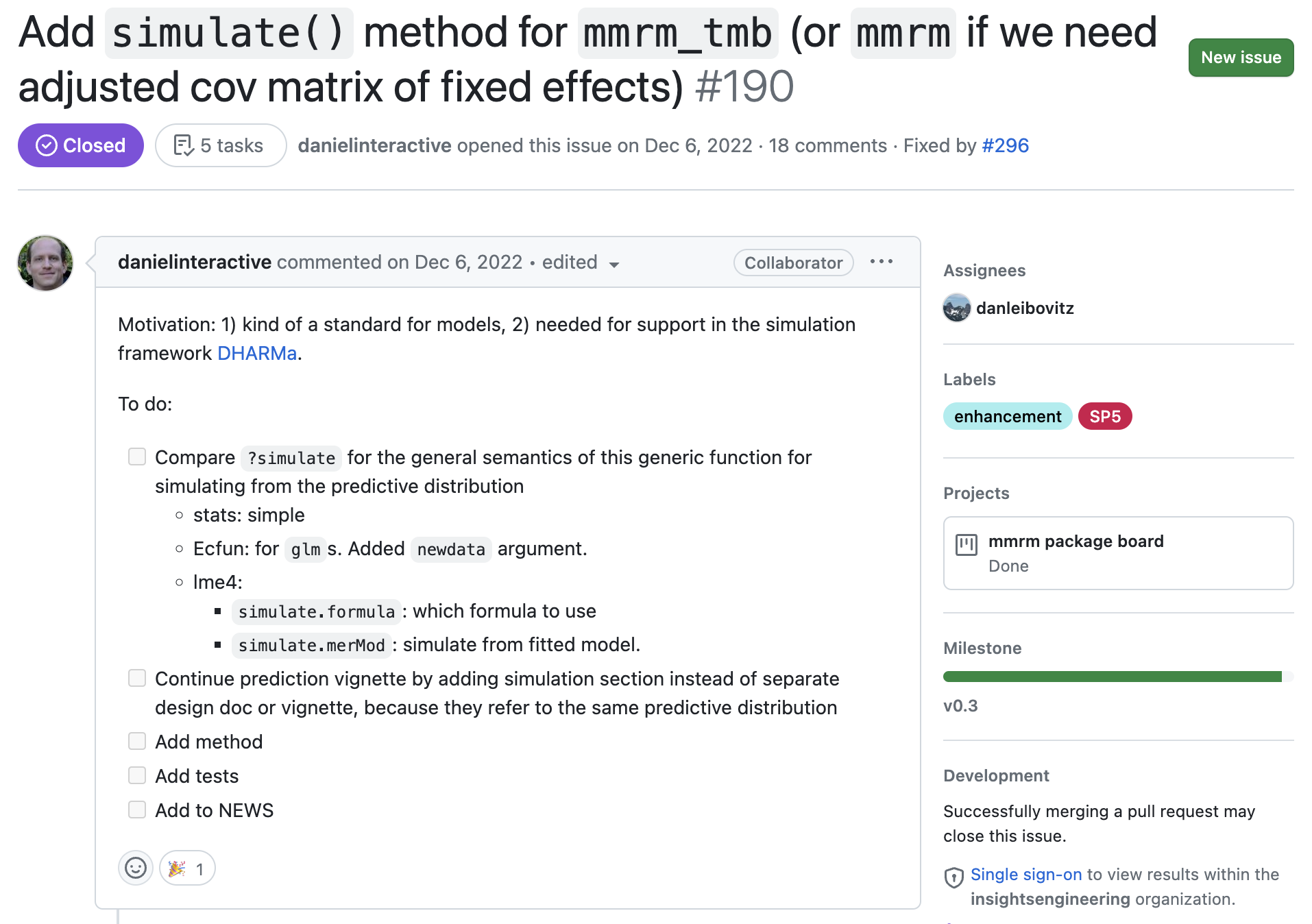

1. Open Communication During Design

Features start with a discussion to make sure we’re aligned with the need and approach.

2. Live Discussion at Bi-weekly Call

Bi-weekly calls allow an opportunity to discuss the details of an approach in more depth.

Live Chat

Great for initial planning,
and aligning on final details

Async Discussion Threads

Great for mocking up proposals
Visual/code-based content like user-interface proposals
Technical details

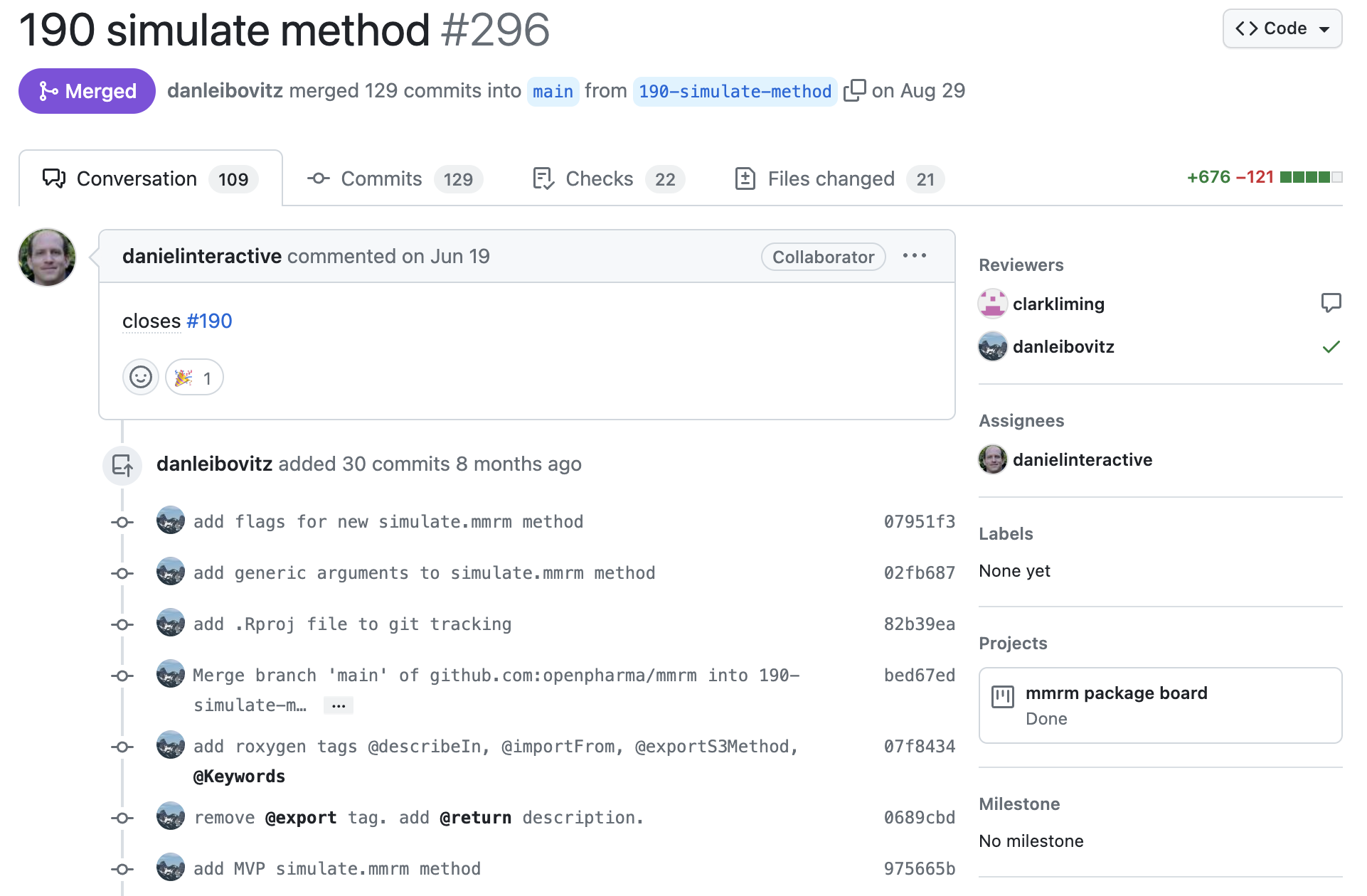

3. Initial Implementation

After deciding on the path forward, feature is often assigned out to an an individual and an initial pass is put forth through a PR.

The initial work is put forth with confidence about what needs to be done, but perhaps not how it needs to be done

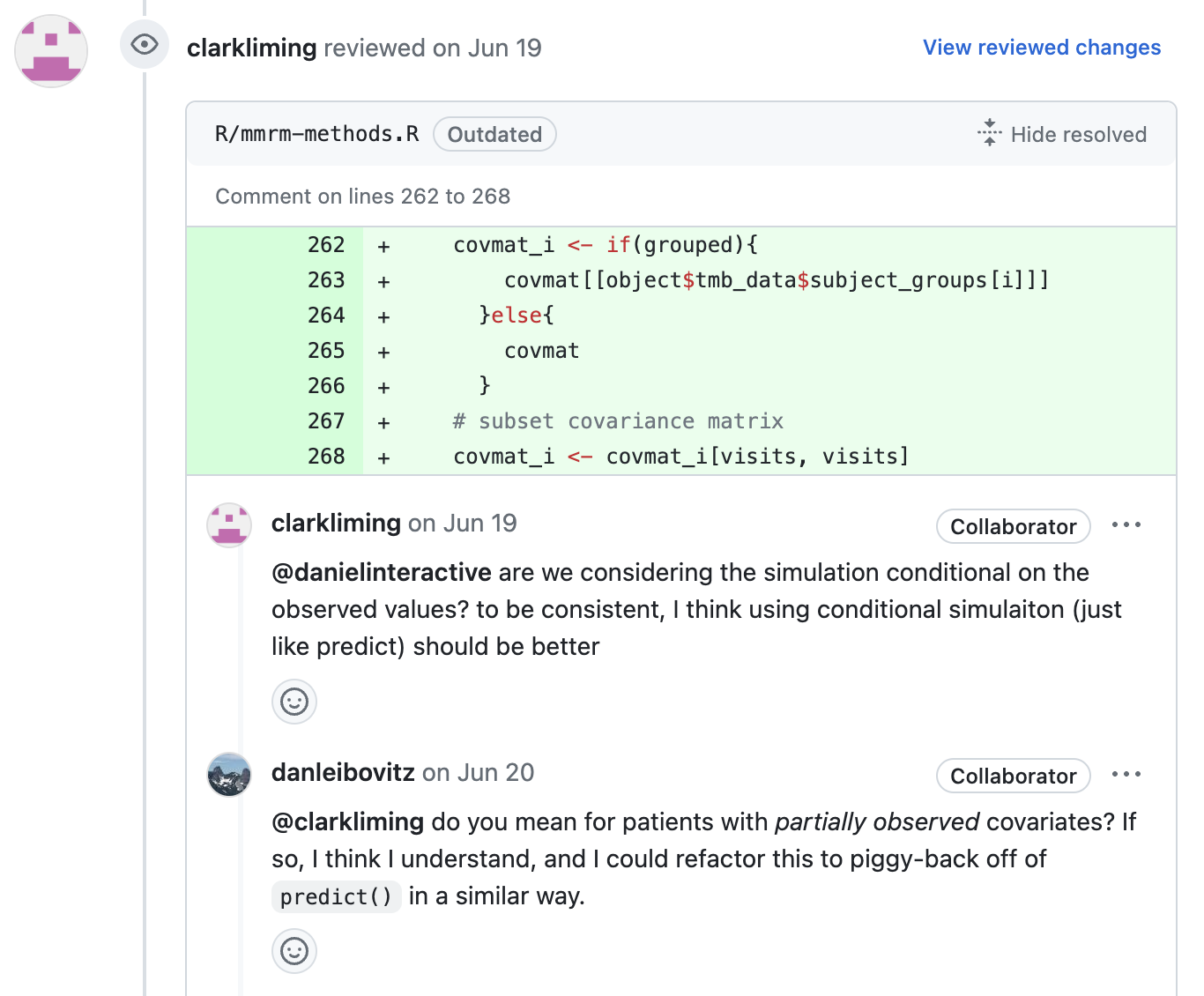

4. Review

Many small decisions recieve feedback until all concerns have been addressed.

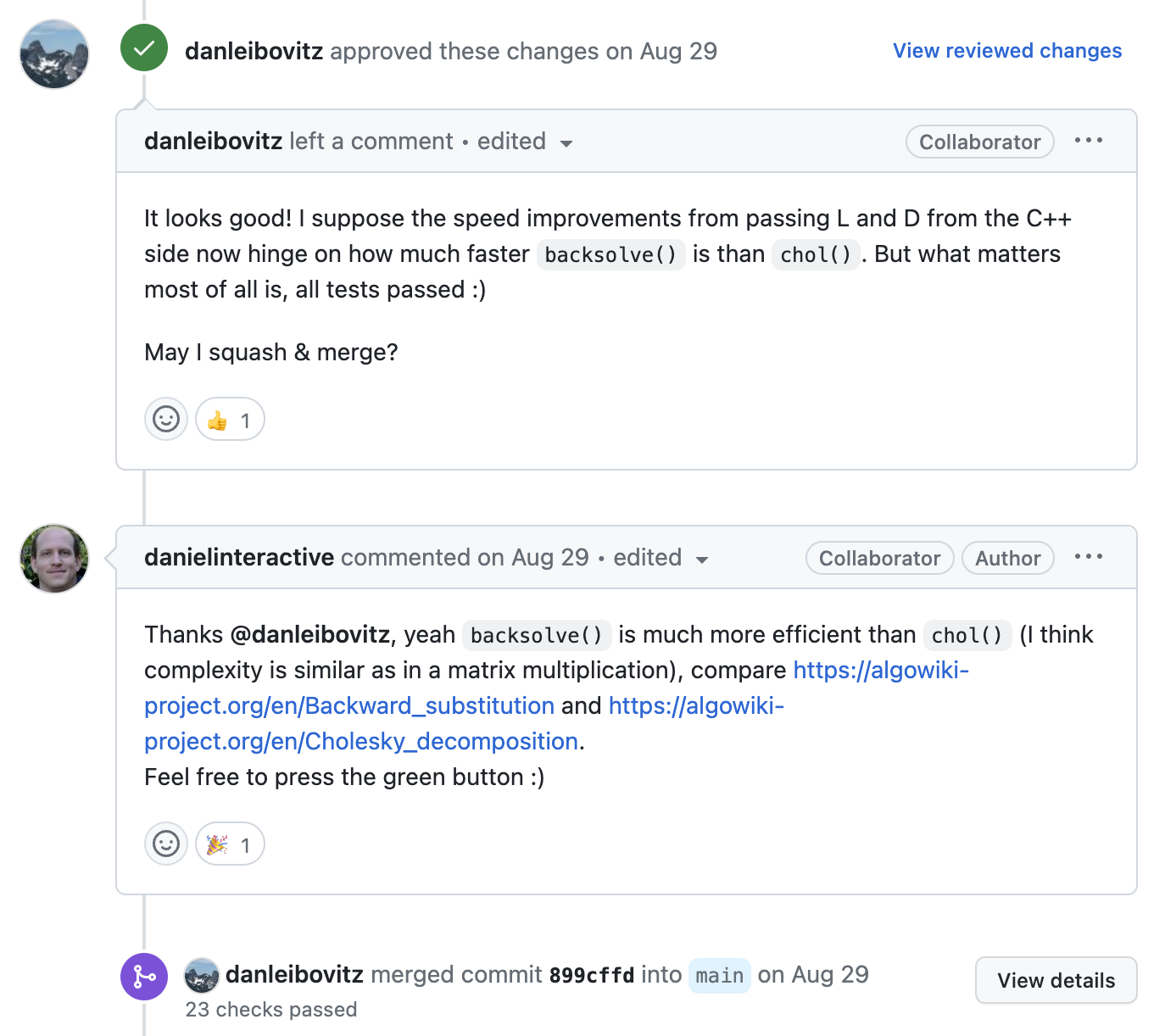

5. Merge 🎉

When all concerns have been addressed, new code is introduced.

Workflow Recap

Discussion preceeds work on new features
Alignment is emphasized at Bi-weekly calls before embarking on development
Volunteer-based implmentation, depending on availability, expertise and interest
Calls allow for intermitent feedback throughout - especially important for larger features
PR submitted, with appropiately intensive review
When concerns are addressed, feature is incorporated

What we covered today

Show practical steps for obtaining an R package implementation of a statistical method
- Discuss key considerations for writing statistical software
- Illustrate throughout with the mmrm package development example
Short hands-on introduction to the mmrm package
- Working together across companies and in open source

Special Thanks to All of `{mmrm}`’s Contributors

Daniel Sabanes Bove (Roche)
Julia Dedic (Roche)
Doug Kelkhoff (Roche)
Kevin Kunzmann (Boehringer Ingelheim)
Brian Matthew Lang (Merck)
Liming Li (Roche)

Christian Stock (Boehringer Ingelheim)
Ya Wang (Gilead)
Craig Gower-Page (Roche)
Dan James (Astrazeneca)
Jonathan Sidi (pinpointstrategies)
Daniel Leibovitz (Roche)
Daniel D. Sjoberg (Roche)

From the statistical method to the R package - the mmrm example

What we will cover today

Slides Available at

Key considerations for writing statistical R packages

Why does this matter in Pharma?

How can we achive this?

Take away lessons for writing statistical software

Choose the right methods and understand them

Why is this important?

How can we understand the statistical method?

Example: mmrm

Example: mmrm (fast forward)

Solve the core implementation problem with prototype code

What is prototype code?

When have you solved the core implementation problem?

Example: mmrm - try to use existing packages

Example: mmrm - try to extend existing package

Example: mmrm - try to make a custom implementation

Spend enough time on planning the design of the R-package

Why not jump into writing functions right away?

How to plan the design of the R-package?

Example: mmrm

Example: mmrm (cont’d)

Assume your R-package is evolving for a long time

Why should we document the methods?

Why do we need tests?

How can I make the package extensible?

Example: mmrm - method documentation

Example: mmrm - tests

Example: mmrm - extensibility

Introduction to the mmrm package

Installation

Features of mmrm (>= 0.3)

Ecosystem integration

Unit and integration testing

Benchmarking with other R packages

Impact of mmrm

Outlook

Hands-On Demo Time!

Demo Instructions

Open source development across companies

Introducing openstatsware

mmrm was our first workstream

Human success factors

Be inclusive in the development

Practical daily development process

1. Open Communication During Design

2. Live Discussion at Bi-weekly Call

Live Chat

Async Discussion Threads

3. Initial Implementation

4. Review

5. Merge 🎉

Workflow Recap

What we covered today

Special Thanks to All of {mmrm}’s Contributors

From the statistical method to the R package - the `mmrm` example

Example: `mmrm`

Example: `mmrm` (fast forward)

Example: `mmrm` - try to use existing packages

Example: `mmrm` - try to extend existing package

Example: `mmrm` - try to make a custom implementation

Example: `mmrm`

Example: `mmrm` (cont’d)

Example: `mmrm` - method documentation

Example: `mmrm` - tests

Example: `mmrm` - extensibility

Introduction to the `mmrm` package

Features of `mmrm` (>= 0.3)

Impact of `mmrm`

Introducing `openstatsware`

`mmrm` was our first workstream

Special Thanks to All of `{mmrm}`’s Contributors
